SK INSPECT

Smart Klaus for optical quality control

The SK Inspect enables automated quality assurance at the end of the production line.

The test process of semi-finished and finished products becomes faster and safer. End-of-lineinspection has never been so easy.

Check. Verify. Document

Perfecting End-of-Line quality control.

Range of applications and advantages

Smart Klaus Inspect was specially developed for end-of-line quality control.

The worker assistance system checks the quality of semi-finished and finished products after mounting and provides feedback. If a product is faulty, the system sends a signal and the worker can react.

This process is possible thanks to the industrial image-processing software with automatic recognition and visual inspection function.

Quality assurance thanks to an automatic downstream visual inspection.

Saving time and increasing efficiency.

0 ppm possible in the outgoing goods.

No more complaints.

Constant speed and precision in the testing process.

Flexible deployment of employees – everyone becomes an inspection expert.

Range of applications and advantages

Smart Klaus Inspect was specially developed for end-of-line quality control.

The worker assistance system checks the quality of semi-finished and finished products after mounting and provides feedback. If a product is faulty, the system sends a signal and the worker can react.

This process is possible thanks to the industrial image-processing software with automatic recognition and visual inspection function.

Quality assurance thanks to a downstream visual inspection.

Saving time and increasing efficiency.

0 ppm possible in the outgoing goods.

No more complaints.

Constant speed and precision in the testing process.

Flexible deployment of employees – everyone becomes an inspection expert.

SK Inspect

Functions

  • Automatic visual inspection during end-of-line inspection
  • Automatic acknowledgement at 0 ppm
  • (Audio)visual signal in case of errors
SK Inspect
Expansions

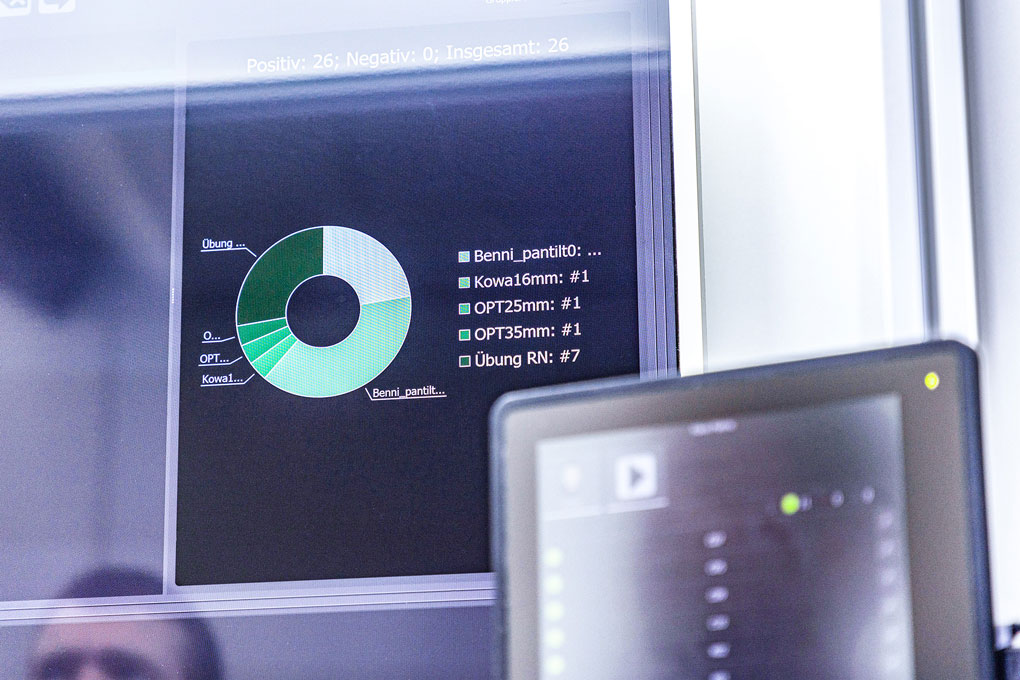

  • Automatic documentation and dashboard
  • Connection of external digital tools
  • Connection of external digital measuring instruments
  • RGB backlight for contrast enhancement
  • Interface to your ERP, MES and PPS system

How it works

Automated End-of-Line testing

Exemplary structure of a workplace. All components of the assistance system can be assembled on existing work tables.

When a workpiece has passed through all of the steps of the production line, Smart Klaus Inspect is used for the final quality inspection.

Using visual characteristics, the worker assistance system checks each component presented to it for completeness, correct processing and damage.

The system immediately indicates errors to the workers so that they can be corrected or sorted out directly.



Optical inspection: injection molded parts
Quality assurance through automatic optical inspection at Nira.
Nira KSV GmbH

Numbers, data, facts

Technical information

Image processing computer
Dimensions (L x W x H) 550 x 440 x 155 mm
Weight 15 kg
Power supply range 110-230 V, 50/60 Hz
Power consumption max. 1.500 W inklusive Peripheriegeräten
Protection 10 A an 230 V, 16 A an 110 V
Processor Intel® Core™ i7-12700K 3.8 GHz, 8 P + 4 E Cores 20 Threads
Memory 16 GB
Hard drive 2 x 512 GB NV2 M.2 500 GB PCI Express 4.0 NVMe (M.2 SSD) configured as RAID 1
Operating system Windows 10 Enterprise LTSC
External Ports 6 x USB 3.0, 1 x USB 3.2 Type-C
Network Ports 2 x 2.5GbE incl. Teaming and TSN, 1 x Intel® GbE LAN
Video Outputs 4 x DisplayPort V1.4a up to 8K
Camera
Resolution 20 MP (5.472×3.648 Pixel)
Framerate 18 fps at full resolution
PanTilt Camera

The intelligent combination of zoom and moveability of the camera enables maximum precision, accuracy and flexibility - even in complex assembly processes.

Dynamic range 12 bit
Resolution 2.448×2.048 Pixel
Frame rate 24 fps
Lens integrated
Motor focal length 6,8 mm (wide) bis 116 mm (tele)
F-Stop 1,5 (wide) bis 3,4 (tele)
Housing
Weight 12 kg
Dimensions 354 x 338 x 239 mml
Connection Cold devices for power supply (110 V -230 V)
USB 2.0 PanTilt control
Field of view and detection accuracy

The camera‘s field of view and detection accuracy depends on the working distance and focal length of the lens used. The specified values for the field of view apply to a working distance of 1,200 mm.

The values for the detection accuracy are empirical values from practical experience in which Smart Klaus operates reliably in typical industrial environments. Below this, the values that can be achieved under ideal environmental conditions are given in brackets.

Focal length 12 mm 16 mm 25 mm 35 mm
Field of view 1.200 x 860 mm 970 x 640 mm 610 x 400 mm 430 x 290 mm
Recognition accuracy 1,6 mm. (0,23 mm/px) 1,5 mm (0,17 mm/px) 0,7 mm (0,11 mm/px) 0,5 mm (0,08 mm/px)
Lighting
Dimensions (L x B x H) 1.200 x 800 x 140 mm (without camera holder)
Weight 15 kg
Power consumption 70 W
Luminous flux ca. 7.000 Lumen
Illuminance on the work surface ca. 2.500 Lux
Light colour 6.000 K (cold-white)
Screens
Touch panel
Surface Antireflective and chemically hardened
Screen diagonal 13 Inch
Resolution Full HD, 1.920 x 1.080
Touch technology Projected capacitive, 10-point multi-touch (can be operated with a glove)
Control display
Screen diagonal 29 Inch
Resolution 2.560 x 1.080 Pixel
