SK THT

Smart klaus for guided THT assembly

The SK THT guides the entire PCB assembly process by means of digital work instructions.

Errors are eliminated, the workload is reduced and quality is automatically assured.



Perfect PCB and circuit board assembly.

Instruct. Assemble. Document.

Range of applications and advantages

The Smart Klaus THT guides workers step by step through the entire PCB assembly process.

Thanks to digital work instructions with accompanying images and real-time feedback, every employee is able to master even the most complex THT assembly – even without previous experience.

Manual assembly processes become faster and safer with the worker assistance system – thanks to the industrial image processing software with automatic recognition and optical inspection function.

Consistently high quality thanks to digital guidance and visual inspection.

0 ppm possible – no more errors in the mounting process.

No more rejects, rework or complaints.

Digital knowledge and work instructions.

Flexible deployment of employees – everyone becomes an assembly expert.

Increased mounting efficiency thanks to digital instructions and automatic visual inspection.

Range of applications and advantages

Smart Klaus Assembly/THT guides workers step by step through the entire PCB assembly process.

Thanks to digital work instructions with accompanying images and real-time feedback, every employee is able to master even the most complex THT assembly – even without previous experience.

Manual assembly processes become faster and safer with the worker assistance system – thanks to the industrial image processing software with automatic recognition and optical inspection function.

Consistently high quality thanks to digital guidance and visual inspection.

0 ppm possible – no more errors in the mounting process.

No more rejects, rework or complaints.

Digital knowledge and work instructions.

Flexible deployment of employees – everyone becomes an assembly expert.

Increased mounting efficiency thanks to digital instructions and automatic visual inspection.

SK THT

Functions

  • Automatic digital work instructions for reliable THT placement
  • The entire mounting process at a glance
  • Automatic inspection without manual acknowledgement
  • (Audio)visual signal in case of errors
  • Automatic confirmation and acknowledgement in case of error-free placement
SK THT
Expansions
  • Pick-to-light system
  • Projector
  • Connection of external digital tools
  • Connection of external digital measuring instruments
  • Automatic documentation and dashboard
  • RGB backlight for contrast enhancement
  • Interface to your ERP, MES and PPS system

How it works

Optimised PCB assembly

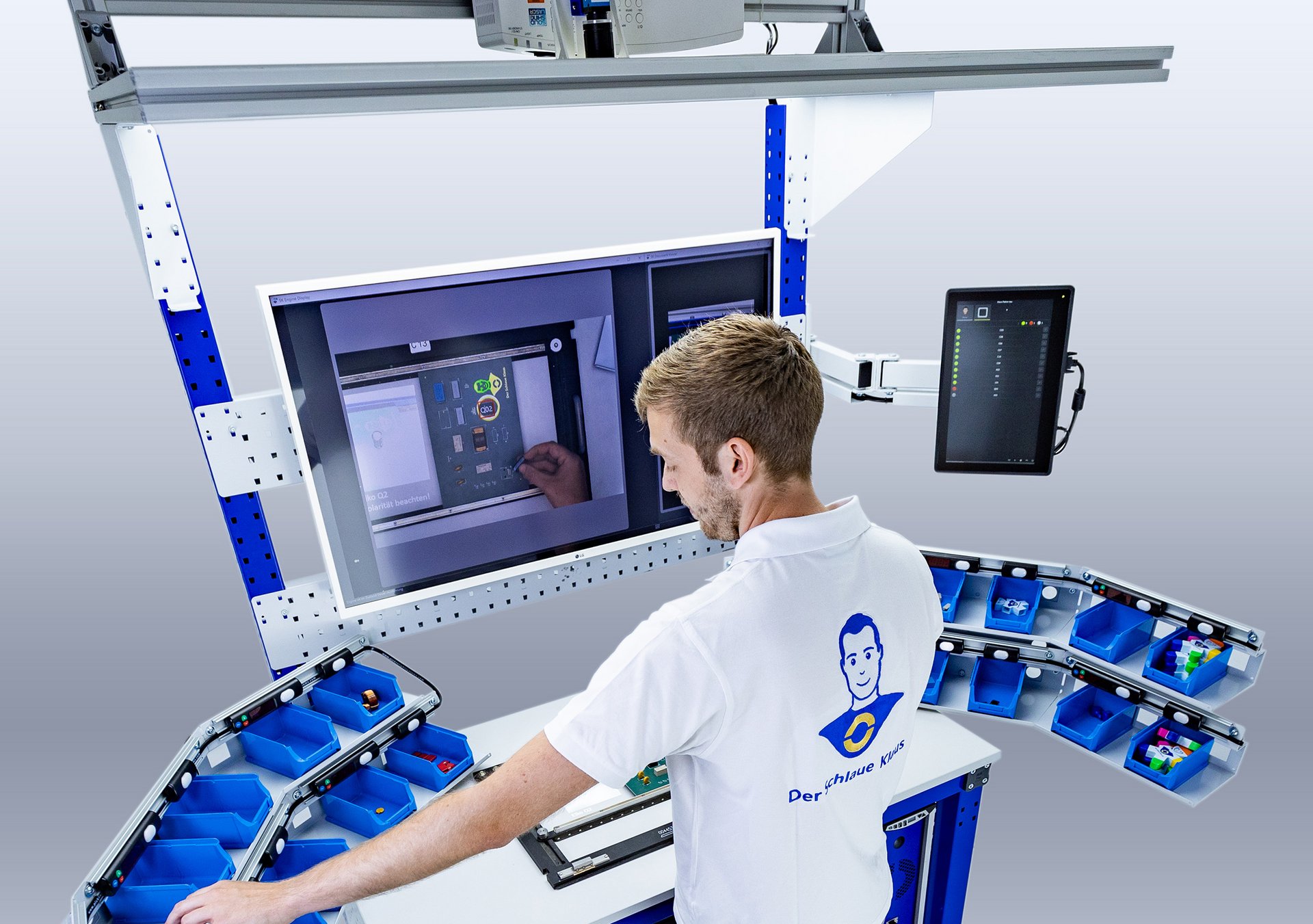

Exemplary structure of a workplace. All components of the assistance system can be assembled on existing work tables.

The SK Assembly worker assistance system guides workers step by step through the manual assembly process for printed circuit boards.

Digital work instructions on the display show workers what to do. With the help of augmented reality and the live image from the camera, the relevant area for the work step is also marked.

The industrial image-processing software permanently analyses and interprets the images captured by the camera. In this way, the worker assistance system can provide feedback in real time as to whether a work step has been carried out correctly, and immediately points out any errors. Smart Klaus only continues the mounting process if all the items on the digital checklist have been successfully completed.

Guided THT placement
At Siemens, Smart Klaus is a key component of a production line.
Siemens AG

Numbers, data, facts

Technical information

Image processing computer
Dimensions (L x W x H) 550 x 440 x 155 mm
Weight 15 kg
Power supply range 110-230 V, 50/60 Hz
Power consumption max. 1.500 W inklusive Peripheriegeräten
Protection 10 A an 230 V, 16 A an 110 V
Processor Intel® Core™ i7-12700K 3.8 GHz, 8 P + 4 E Cores 20 Threads
Memory 16 GB
Hard drive 2 x 512 GB NV2 M.2 500 GB PCI Express 4.0 NVMe (M.2 SSD) configured as RAID 1
Operating system Windows 10 Enterprise LTSC
External Ports 6 x USB 3.0, 1 x USB 3.2 Type-C
Network Ports 2 x 2.5GbE incl. Teaming and TSN, 1 x Intel® GbE LAN
Video Outputs 4 x DisplayPort V1.4a up to 8K
Camera
Resolution 20 MP (5.472×3.648 Pixel)
Framerate 18 fps at full resolution
PanTilt Camera

The intelligent combination of zoom and moveability of the camera enables maximum precision, accuracy and flexibility - even in complex assembly processes.

Dynamic range 12 bit
Resolution 2.448×2.048 Pixel
Frame rate 24 fps
Lens integrated
Motor focal length 6,8 mm (wide) bis 116 mm (tele)
F-Stop 1,5 (wide) bis 3,4 (tele)
Housing
Weight 12 kg
Dimensions 354 x 338 x 239 mml
Connection Cold devices for power supply (110 V -230 V)
USB 2.0 PanTilt control
Field of view and detection accuracy

The camera‘s field of view and detection accuracy depends on the working distance and focal length of the lens used. The specified values for the field of view apply to a working distance of 1,200 mm.

The values for the detection accuracy are empirical values from practical experience in which Smart Klaus operates reliably in typical industrial environments. Below this, the values that can be achieved under ideal environmental conditions are given in brackets.

Focal length 12 mm 16 mm 25 mm 35 mm
Field of view 1.200 x 860 mm 970 x 640 mm 610 x 400 mm 430 x 290 mm
Recognition accuracy 1,6 mm. (0,23 mm/px) 1,5 mm (0,17 mm/px) 0,7 mm (0,11 mm/px) 0,5 mm (0,08 mm/px)
Lighting
Dimensions (L x B x H) 1.200 x 800 x 140 mm (without camera holder)
Weight 15 kg
Power consumption 70 W
Luminous flux ca. 7.000 Lumen
Illuminance on the work surface ca. 2.500 Lux
Light colour 6.000 K (cold-white)
Screens
Touch panel
Surface Antireflective and chemically hardened
Screen diagonal 13 Inch
Resolution Full HD, 1.920 x 1.080
Touch technology Projected capacitive, 10-point multi-touch (can be operated with a glove)
Control display
Screen diagonal 29 Inch
Resolution 2.560 x 1.080 Pixel
